东芝
设备信息

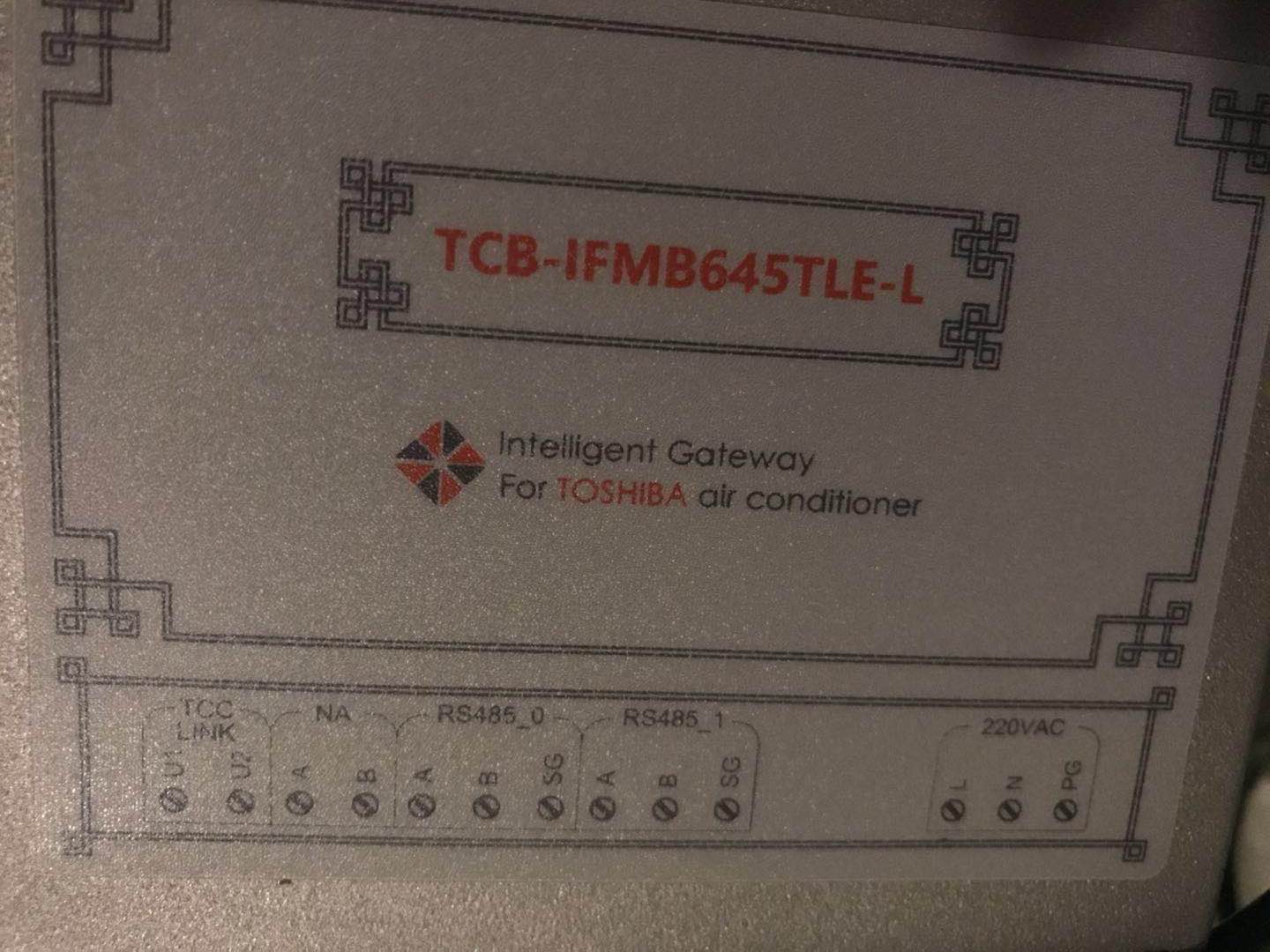

- 支持东芝 TCB-IFMB641TLE-L,Intelligent Gateway For TOSHIBA air conditioner

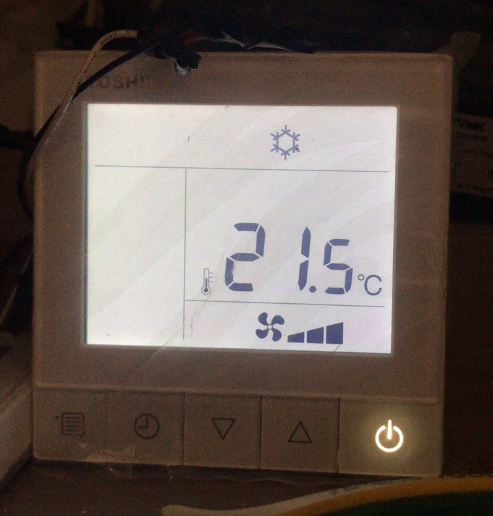

- 485-1接电脑(中控网关),485-0接面板
- u1、u2接室外机
配置参数
类型 | 参数 | 必填 | 说明 |
---|---|---|---|
toshiba | channel | 是 | 串口号,波特率9600,偶校验 |
address | 是 | 网关地址 | |
id | 是 | 内机地址 | |
readInterval | 否 | 读取时间间隔 |
配置示例
type | config |
---|---|
toshiba | channel=,readInterval=5,address=1,id=1 |
设备通道
通道 | 类型 | 说明 |
---|---|---|
switch | Switch | 开关,值为on、off |
mode | Enum | 模式,值为:heat、cool、dry、fan、auto |
settemp | Number | 设置温度 |
fan | Enum | 设置风速,值为:auto、high、mid、low |
temperature | Number | 当前温度 |
